MODELE : FORM 200ms
ANNEE : 2012
SERIE : UP2374

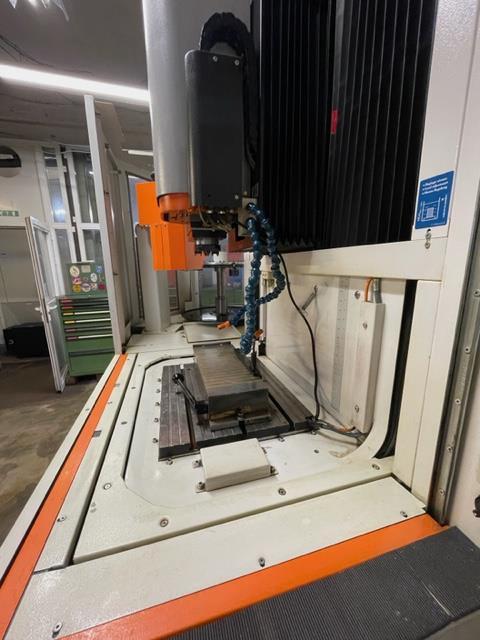

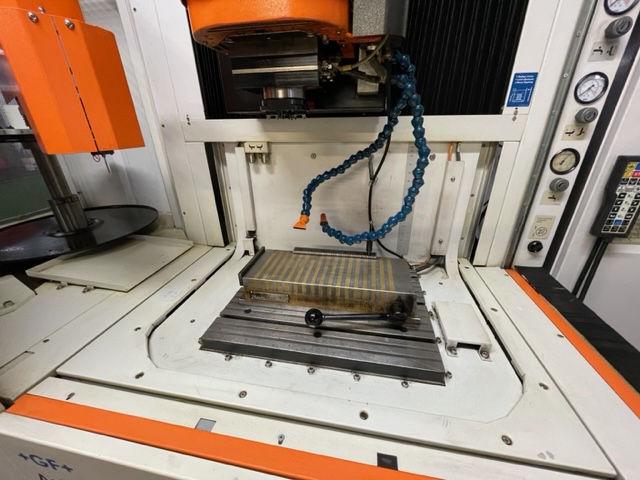

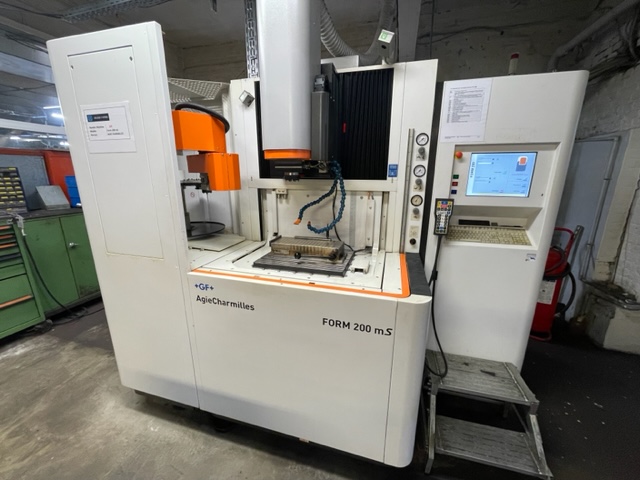

Agie Charmilles Form 200 Die Sinking EDM The Form 200 AgieCharmilles offers a CNC die-sink EDM that meets high requirements for the tool, mold industry. The FORM 200 die sinker EDM system was designed for extraordinary quality in large workpieces. Accuracy according to VDI (ISO) standards Dual measuring systems Programmable 3 sided drop tank Vision 5 control with multitasking operating system IPGS high efficiency 64 Amp generator IQ module to reduce electrode frontal wear Accura C-axis integrated in the Z axis
BRAND: | CHARMILLES | YEAR: | 2012 |
MODEL: | FORM 200ms | PRODUCTION HOURS: | |
APPLICATION TYPE: | EDM | LOCATION: | |
MACHINE TYPE: | WIRE EROSION | AVAILABILITY: | IMMEDIATELY |
TECHNICAL INFORMATION | |||
GENERAL DATA | |||
MACHINE WEIGHT: | 2800 kg | ||
MESUREMENTS: | 1900 x 1690 x 2522 | ||
MOVEMENT | |||
X-AXIS MOVEMENT: | 350 mm | Y-AXIS MOVEMENT: | 250 mm |
Z-AXIS MOVEMENT: | 300 mm | V-AXIS MOVEMENT: | |
U-AXIS MOVEMENT: | |||
WORKPIECE | |||
WORKPIECE X: | 812.800mm | WORKPIECE Y: | 558.800mm |
WORKPIECE Z: | 381.000mm | WORKPIECE WEIGHT: | 500kg |
TABLE | |||
OUTER LENGTH: | 20" | OUTER WIDTH: | 16" |
ADDITIONAL INFORMATION | |||
MACHINE BENEFITS | |||
